Annotate DICOM images

V7 supports DICOM image annotation on our Team, Business, and Enterprise plans. We've put together the guide below to give you and your team everything you need to get started with DICOM.

Upload options

Before uploading a series to V7, we'd recommend zipping the series together outside of V7 and renaming the .zip file to .dcm.

This will upload the slices as "frames" in a timeline, allowing your team to create labels that span several slices, and enabling the use of interpolation to help automate the labelling process.

400400

If a DICOM series is not zipped together, each slice will be uploaded as an individual image:

632632

8-bit vs 16-bit images

16-bit DICOM images are essential for the visualization of medically relevant features often found in gradients.

470470

V7 supports DICOM natively in 16-bit. This allows you to view images at their original quality and to use windowing features to see beyond what your monitor is able to display in 250 values per color.

Image manipulation

V7's image manipulation panel is especially useful when annotating DICOM images.

Adjust window levels directly from the panel, or hold Tab and move your cursor up and down or left to right.

320320

You can also apply the Bone or Jet color maps to your series. Let's take a look at an ultrasound image with the different color maps applied. Here it is in the default Raw format:

605605

Now here it is with the Bone color map applied:

600600

And here it is with the Jet color map:

601601

Measures

Click the Measurements toggle in the Annotations menu, or hit Ctrl + M to display the pixel measurements of each label in in an image or series.

294294 310310

If your team is labelling ultrasound or DICOM series containing measurements, V7 will display measurements in cm.

Auto-annotate

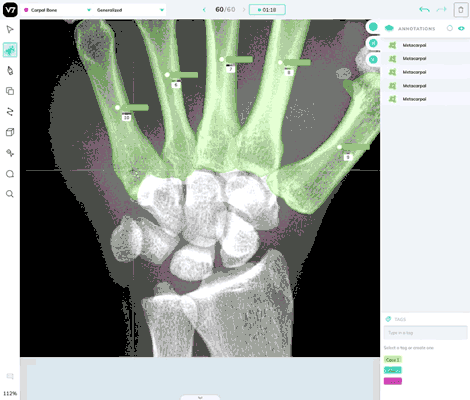

Our most powerful annotation tool, Auto Annotate, can be used in DICOM images. It works reliably in X-Ray, CT scans, and most forms of medical imaging, but you may find that it struggles to correctly segment polygons in ultrasound.

470470

Use the brush tool in any instances where Auto-Annotate is less effective.

Before getting started

Be sure to check out our interpolation and brush tool guides for guidance on how to make fine changes to polygons on DICOM slices.
