Export your data

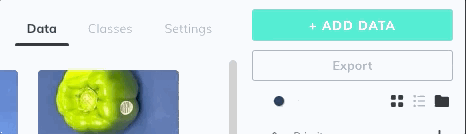

To export data from V7, open up any of your datasets, and click Export in the top right of the page.

Create an Export Version

Each export from V7 creates a new Export Version.

Export versions are immutable. Once you generate one, it remains saved within your dataset's export panel and can be used to compare between training experiments or as a form of version control.

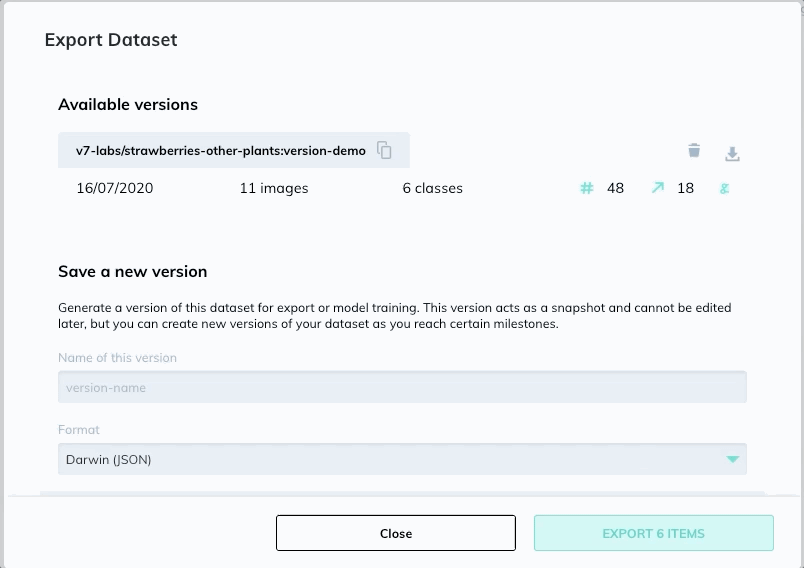

If this is your first time exporting the data in this dataset, click Export and fill out each of the fields under Save a new version.

Give your dataset version a name and pick an export format.  We recommend Darwin(JSON). It resembles a COCO format with some added features. It's worth noting that Darwin JSON is also the only format that supports sub annotations (text, directional vector, attributes, instance ID)

You can also export datasets in COCO, CVAT, DARWIN (XML), PASCAL VOC, and PNG (for semantic masks, and instance masks). Jump to the final section of this guide for more information about the different formats that V7 offers.

From there, select which images or videos from your dataset should be exported - only those that have been marked as complete, or a selection from your dataset

Tip: You can select any item in your dataset, choose to Select all at the bottom of the page to quickly export all items within a dataset.

You can also choose to include worker metadata on the export file.  This will include the first name, last name, and username of the members of your team who created and reviewed the labels in this dataset.

Finally, you can also choose to include an export token to the URLs within each file. This will allow anyone with access to the original image or video file (whether they have access to V7 or not) that corresponds with each annotation. Please note that choosing this option will mean that the exported data will not be encrypted.

Once you’ve hit Export, you and your team will be notified once the dataset is ready to download. Depending on the size of your dataset, and the export format selected, this can take between a 1 second to an hour.

If your dataset is smaller than 100,000 images and is taking longer than an hour, consider reaching out to support, or testing the export again using the Darwin JSON export. In some occasion, incompatibilities between export formats and labels or data formats used may cause exceptions.

You can retrieve the dataset from Team Notifications in the top left of the page.

Downloading an Export

You can download each of the available versions of your data by selecting the download icon, or by copying a CLI command to your clipboard (you can read more about exporting data via CLI commands here).

Note: Downloading a very large export (10,000 files or higher) may put a strain on your browser. Using the CLI command is a more robust method of exporting large datasets.

About Computer Vision Export Formats

V7's standard export format is Darwin JSON. It's a standard JSON format designed to be fast, versatile, and cover every annotation type in the industry. If you are using another export format, consider testing Darwin JSON first to facilitate your data's flow.

Format Name

Type

Supports

Notes

File Structure

Darwin JSON

JSON

Polygons, Bounding boxes, Tags, Polylines, ellipses, Keypoints, Keypoint skeletons, Text, Directional Vectors, Attributes, Instance IDs

Fastest, Most versatile

1 Per image

Darwin XML

XML

Polygons, Bounding boxes, Tags, Attributes

No video

1 Per image

COCO

JSON

Polygons, Bounding boxes

Slow, No video

1 large file per dataset

CVAT

JSON

Polygons, Bounding boxes

Slow, Proprietary, No video

1 Per image

Dataloop

JSON

Polygons, Bounding boxes

Slow, Proprietary, No video

1 Per image

Semantic PNG

PNG

Polygons

Not re-importable

1 Per image

Instance PNG

PNG

Polygons

Not re-importable

1 per instance

Pascal VOC

XML

Bounding boxes

Outdated
